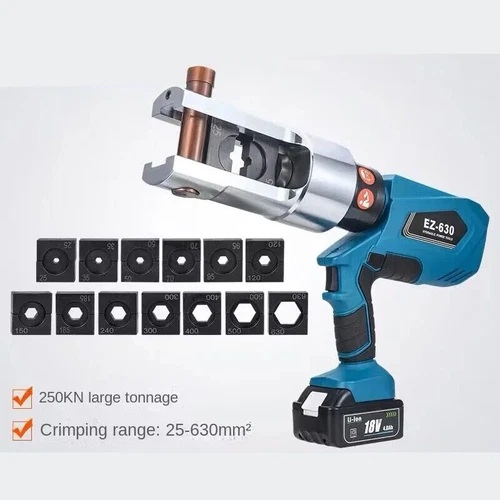

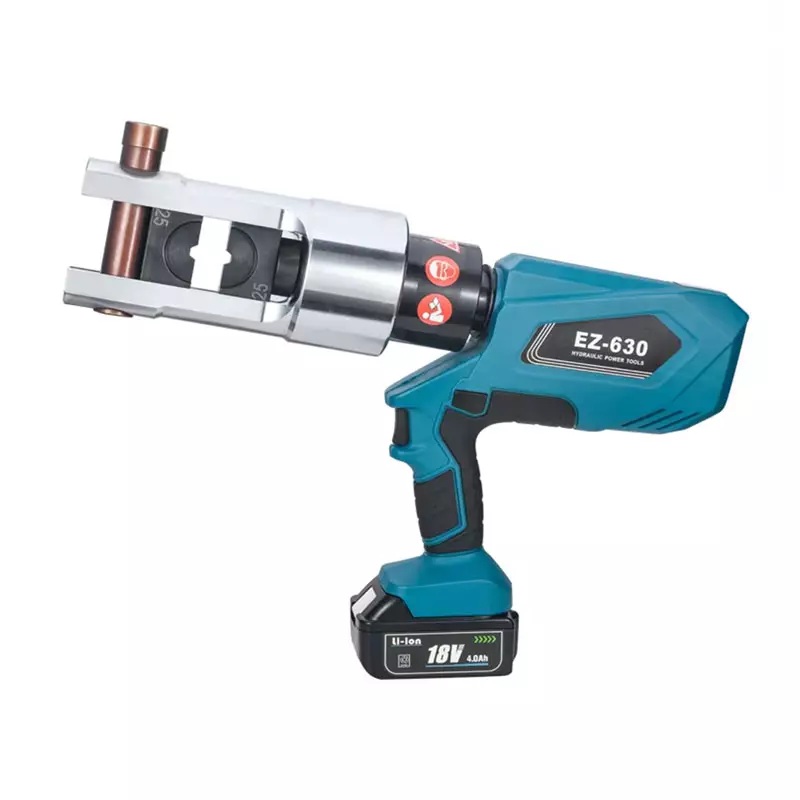

MODEL: KAEN EZ-630 Cordless Hydraulic Cable Plier
Features:
- High Output Force: 250 kN hydraulic pressure ensures secure crimping for large cables.
- Wide Crimping Range: Compatible with dies from 25–630 mm² for versatile applications.
- Cordless Operation: 18V / 4Ah lithium-ion battery provides mobility and continuous use.
- Fast Charging: Approx. 2-hour recharge cycle keeps downtime minimal.

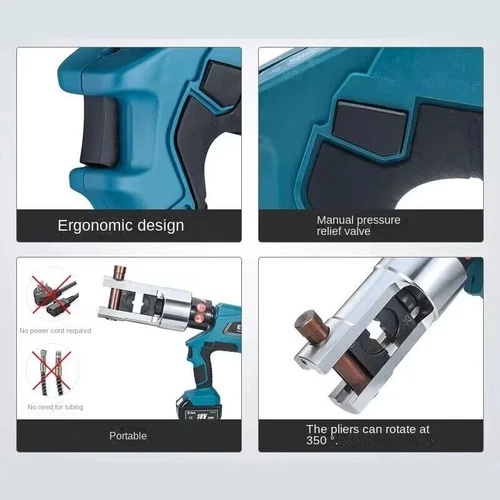

- Ergonomic Design: Balanced handle and compact body reduce operator fatigue.
- Intermediate Recycle Function: Allows re-crimping without full reset for efficiency.
- Complete Accessories: Includes dual batteries, charger, full die set, and heavy-duty carry case.
Specification:
| Power Supply/ Voltage | 220-240v (Single) |
| Frequency | 50 HZ |
| Output | 200KN |
| Crimp range | 25 – 630mm |
| Stroke | 20mm |
| Mould Size | 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630mm² |
| Battery | DC18V / 4.0Ah |
| Times of crimping | 130times per saturation voltage (copper wire 150mm²) |
| Weight | 9.5kg |
Product Warranty:
12 months Warranty
