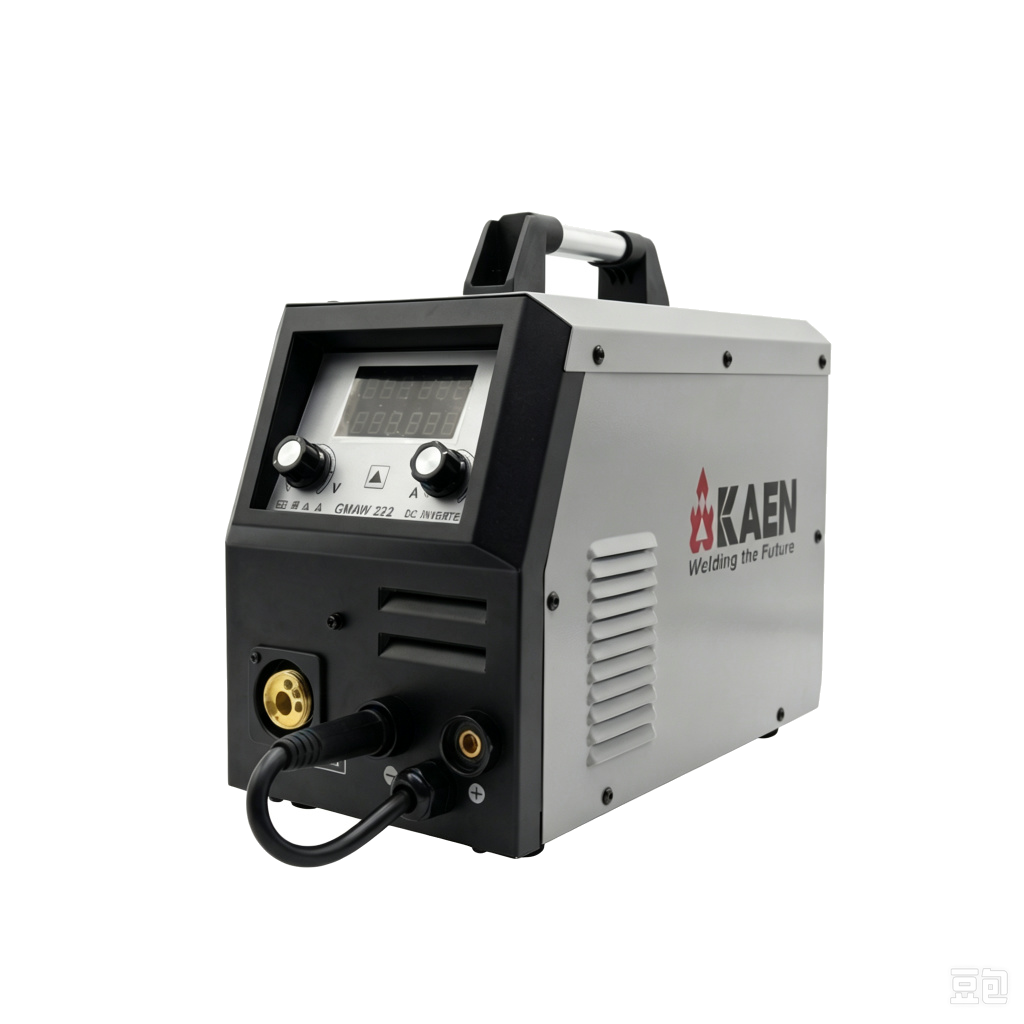

KAEN GMAW222 MIG Welding Machine

RM1,450.00

  • Advanced (IGBT)inverter technology
  • Light, Compact, Easy to operate
  • Digital display, arc characteristic adjustable
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
Categories: , Tags: , , Brand:

Product Description

MODEL: KAEN GMAW222 Welding Machine
APPLICATIONS:

* Used for most types of sheet metal welding
* Fabrication of pressure vessels and steel structures
* Light Industry Iron & Steels Processing Factories
* Equipment Assemble & Repairs
* Automotive industry and home improvement industry

ADVANTAGE OF KAEN GMAW222:

* Creates high-quality welds
* Minor weld splatter
* Can be used to join dissimilar metals
* Can be fully or semi-automatic
* Good weld speed

FEATURES:

* Smart Control Panel: Smart Digital Display shows all Welding Parameters, including: Welding Mode, Thickness of Welding Wire, Voltage, Current, and Type of Gas.
* Synergic MIG & Manual MIG: Welding Parameters will be Automatically Set by simply adjusting the Wire Feeding Speed Button. 2T/4T MIG Torch Setting is Applicable.
* Applicable to Various Welding Requirements: Can be loaded with 5kg of Solid Wire and 1kg of Flux Cored Wire. Applicable wire: 0.8-1.2mm. Applicable for welding: Aluminum, Carbon Steel, Stainless Steel.

PRODUCT WARRANTY:

12 Months Warranty

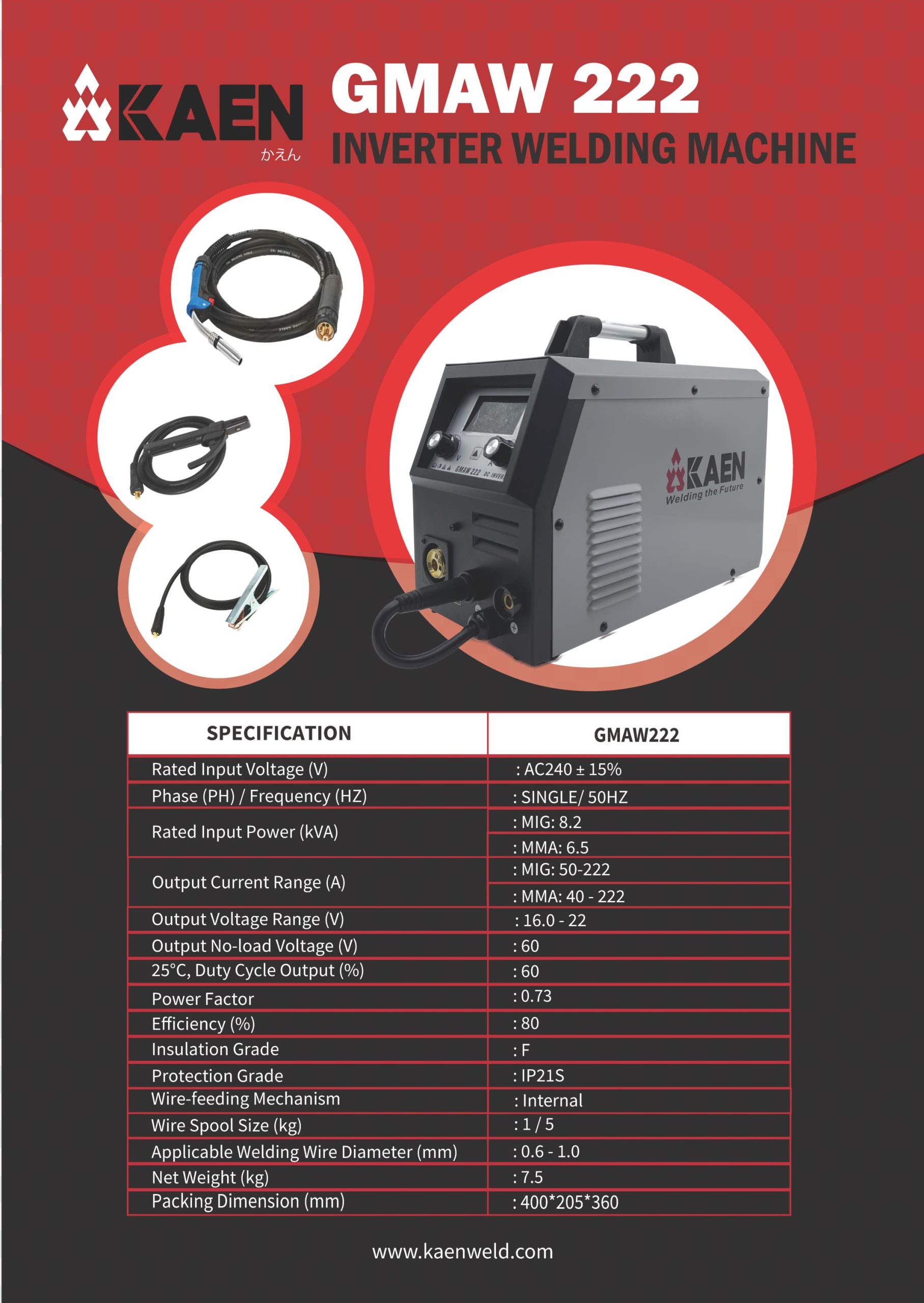

CATALOGUE

Download Here

Additional Information

Input Voltage (V)

AC240V±15%

Phase

Single

Frequency (HZ)

50HZ

Rated Input Power (A)

4.8A

Current Adjust Range (A)

20-200A

40℃ 60% Duty Cycle Output

200

40℃ 100% Duty Cycle Output

155

No-load Voltage (V)

58V

Efficiency (%)

85%

Power factor

0.73

Insulation Class

F

Housing Protection Class

IP21S

Welding Thickness (mm)

0.8+

Net Weight (kg)

14.5

Packing Dimension (mm)

380x168x280
