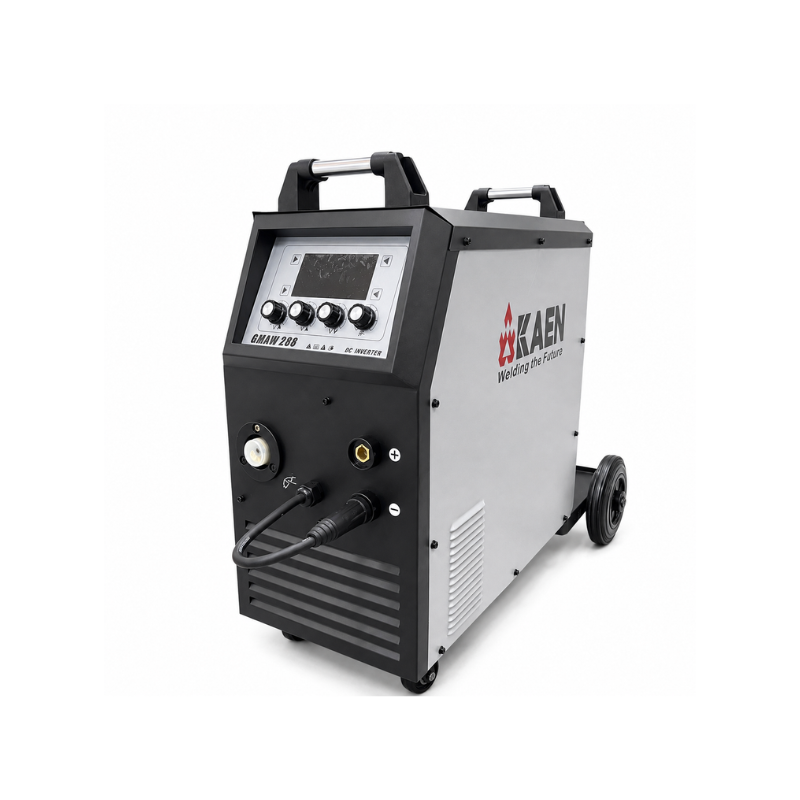

KAEN GMAW288 MIG Welding Machine

RM2,500.00

  • Advanced (IGBT) inverter technology
  • Digital display, arc characteristic adjustable
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
Categories: , Tags: , , Brand:

Product Description

MODEL: KAEN GMAW288 MIG Welding Machine

FEATURES
  • Smart Control Panel
    Smart Digital Display on this MIG Welding Machine shows all the Welding Parameters includes: Welding Mode、Thickness of Welding Wire、Voltage、Current、Type of Gas;
  • Synergic MIG & Manual MIG
    Welding Parameters will be Automatically Set by Simply Adjusting the Wire Feeding Speed Button. 2T/4T MIG Torch Setting is Applicable;
  • Applicable to Various Welding Requirements
    Can be loaded with 5kg of Solid Wire and 1kg of Flux Cored Wire, Applicable wire: 0.8-1.2mm.
    Applicable of Welding: Carbon Steel, Stainless Steel.
APPLICATION
  • Used for most types of sheet metal welding
  • Fabrication of pressure vessels and steel structures
  • Light Industry Iron & Steels Processing Factories
  • Equipment Assemble & Repairs
  • Automotive industry and home improvement industry
ADVANTAGES OF KAEN GMAW288
  • Creates high-quality welds
  • Minor weld splatter
  • Can be used to join dissimilar metals
  • Can be fully or semi-automatic
  • Good weld speed
PRODUCT WARRANTY

12 Months Warranty

Catalogue

Download Here

Additional Information

Input Voltage (V)

AC415V±15%

Phase

Three

Frequency (HZ)

50/60HZ

Rated Input Power (KVA)

MIG: 10.9
MMA: 8.9

Output Current Range (A)

MIG: 50 – 270
MMA: 50 – 288

25℃ Duty Cycle Output

60%

No-load Voltage (V)

68V

Output Voltage Range (V)

16 – 28

Efficiency (%)

80%

Power factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Wire Feeding Mechanism

Internal

Wire Spool Size (kg)

15

Welding Wire Diameter (mm)

0.8 – 1.2

Net Weight (kg)

37.5

Packing Dimension (mm)

895x305x740
