KAEN GMAW500 FCAW/ MIG Welding Machine

RM6,500.00

  • Designed for welding using continuous coils, a filled wire and electrodes.
  • Three controllers for regulating wire speed, welding voltage and welding arc properties.
  • Very durable wire feeder with four feed wheels.
  • Option for easy inversion of welding polarity.
  • Professional and technical consultation of welding experts.
Categories: , Tags: , , , Brand:
Model: KAEN GMAW500 FCAW MIG Welding Machine



Features
  • A welding machine that is designed for welding using coils on spools of 5 kg and 15 kg weight and using electrodes.
  • The welding machine is equipped with wheels for easy, convenient portability.
  • The welding machine has a lightweight, optimally convenient external feeder for moving between different locations.
  • The perfect solution for industry and many continuous welds, for joining shops and welding departments in factories that weld using coils of 0.8 to 1.6 mm diameter.
  • Welding machine works using the most advanced IGBT technology.
  • Welding machine has full overload protection and open phase protection.
Applications of KAEN GMAW500
  • Used for most types of sheet metal welding
  • Fabrication of pressure vessels and steel structures
  • Light Industry Iron & Steels Processing Factories
  • Equipment Assemble & Repairs
  • Automotive industry and home improvement industry
Product Warranty

1 Year Warranty

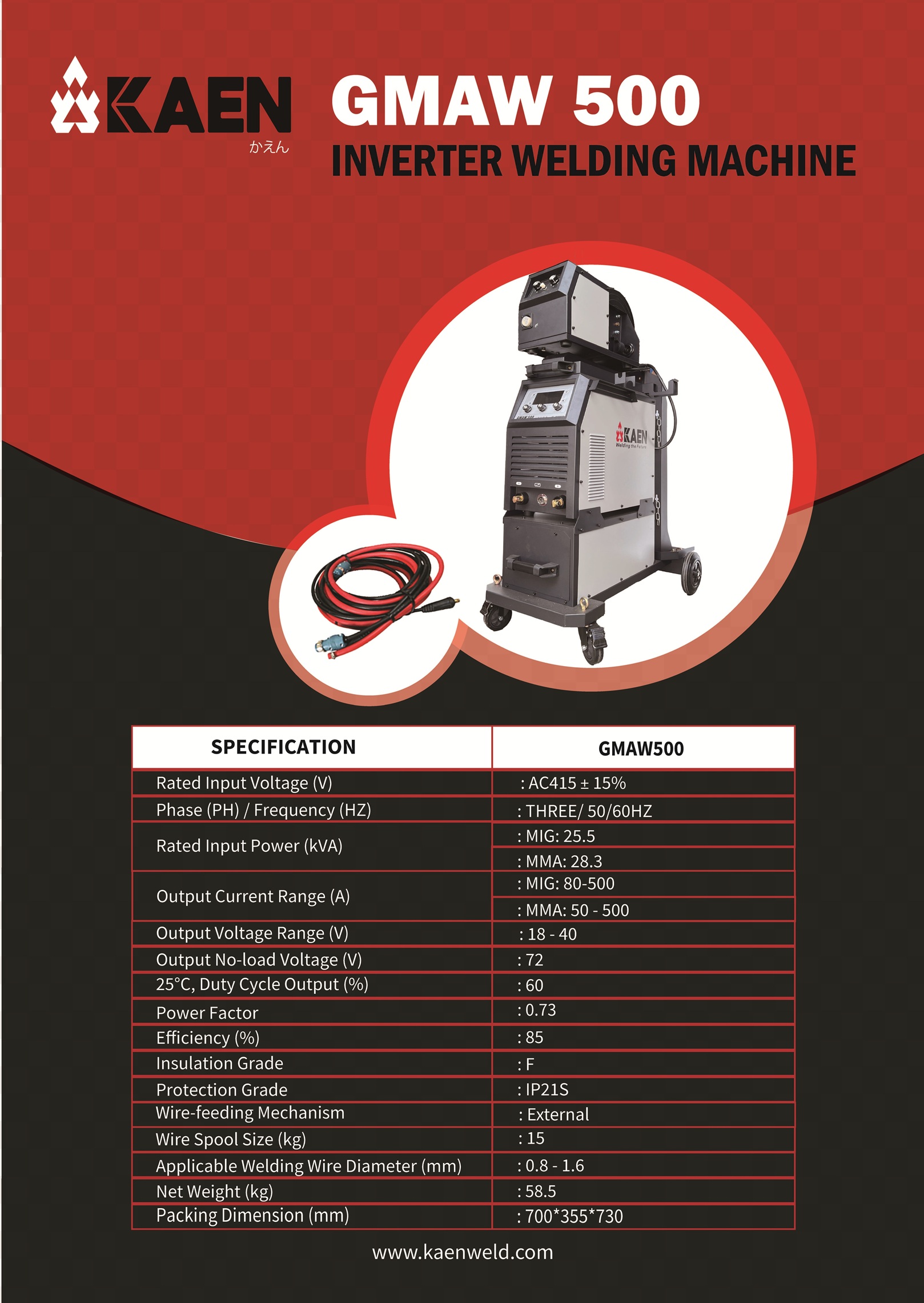

Catalogue

Download Here

Technical Specification

Input Voltage (V)

AC415V±15%

Phase

Three

Frequency (HZ)

50HZ

Rated Input Power (A)

23.5A

Current Adjust Range (A)

50-500A

40℃ 60% Duty Cycle Output

500

40℃ 100% Duty Cycle Output

389

No-load Voltage (V)

68V

Efficiency (%)

85%

Power factor

0.73

Insulation Class

F

Housing Protection Class

IP21S

Welding Thickness (mm)

0.8+

Net Weight (kg)

40

Packing Dimension (mm)

620x400x960

1. GMAW500I Welding Machine
2. 3M Welding Cable with Mig Torch x 1
3. 3M Welding Cable with Earth Clamp x 1
4. Heater Regulator x 1
5. Owner’s Manual x 1
