Product Description

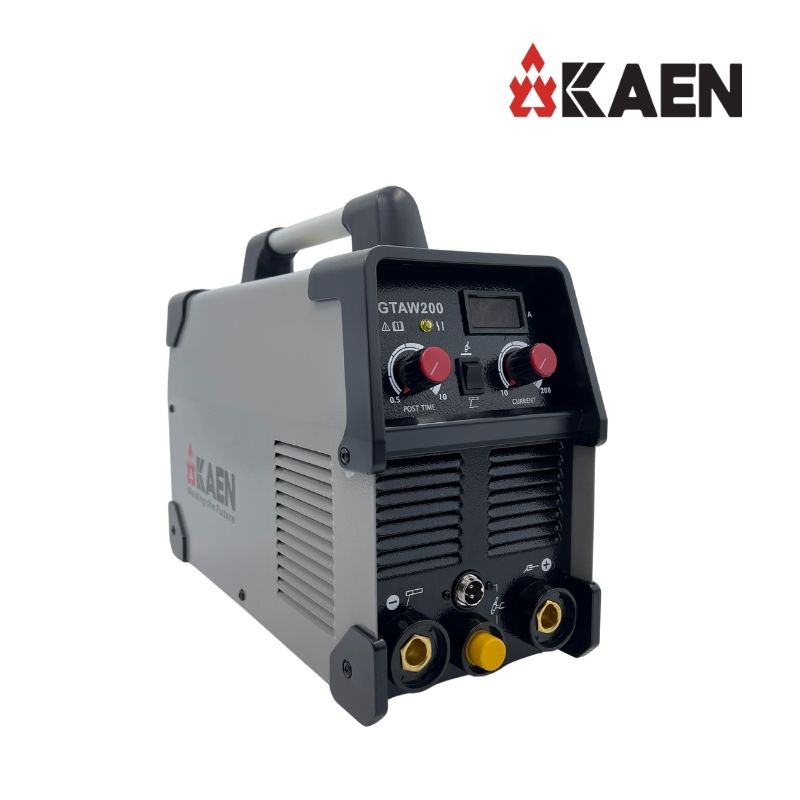

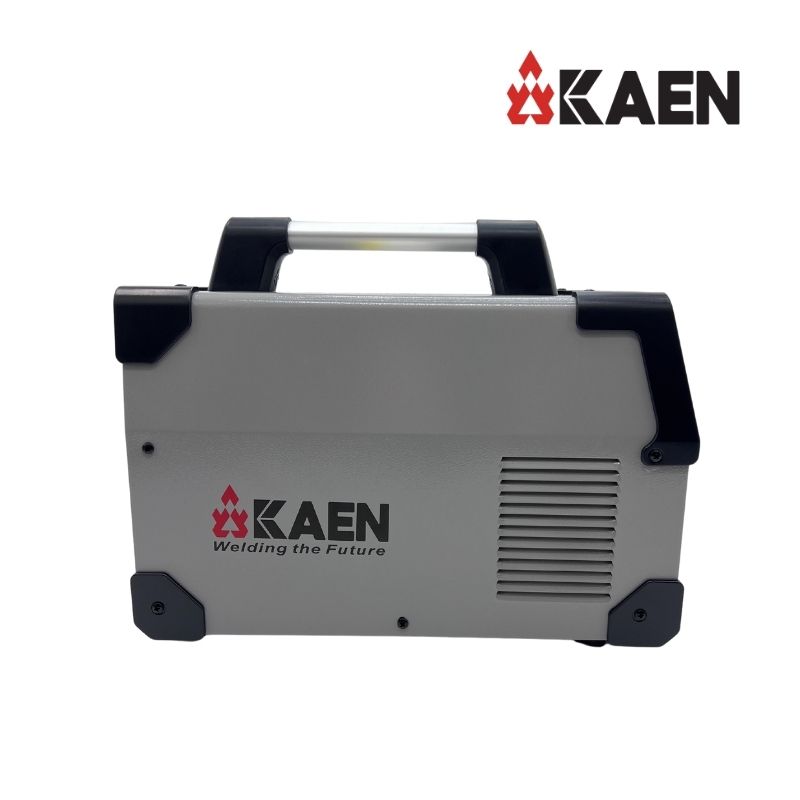

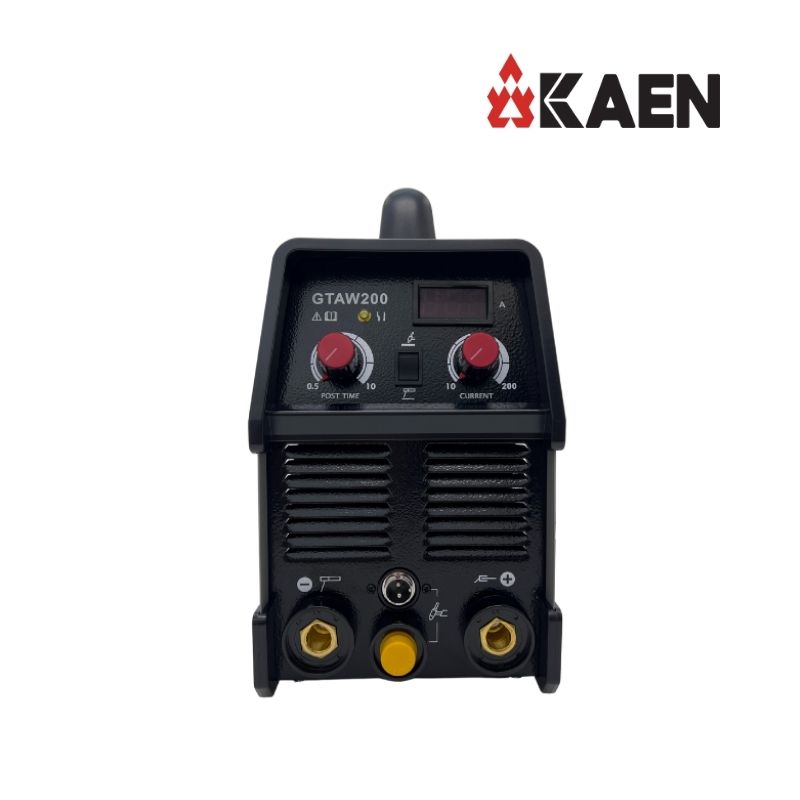

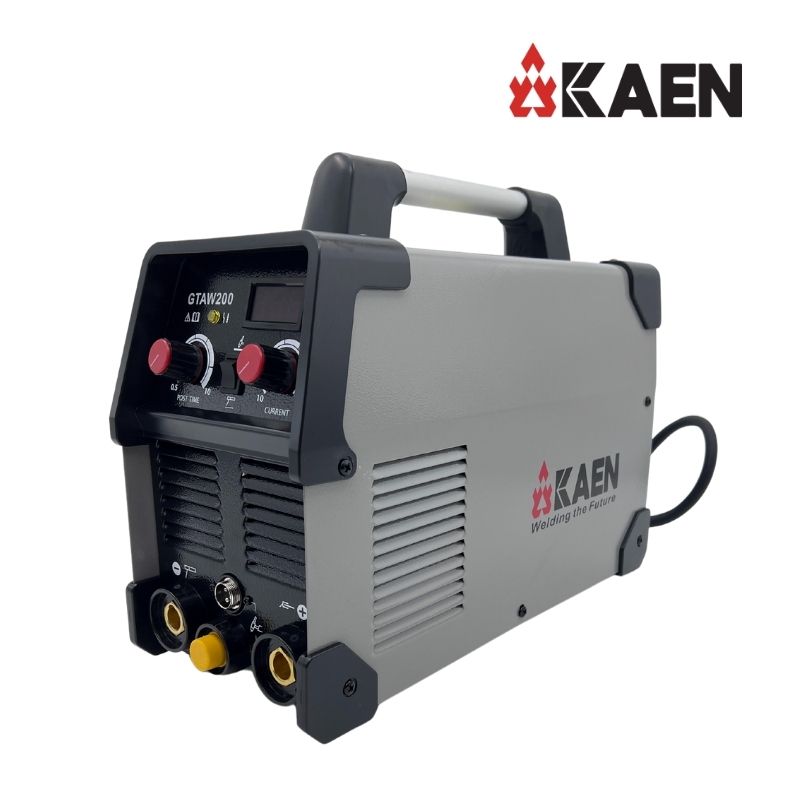

MODEL: KAEN GTAW200 TIG Welding Machine
FEATURES:
- New generation of MOSFET inverter welding machine
- Dual function: HF-TIG and MMA
- The whole machine is stable and reliable
- 15% tolerance for input voltage
- With 100% success ignition rate
- The post time of gas adjustable (0.5-10s).
- No fake on the output current of machine
- Excellent welding performance for thin sheet metal.
- Very low cost of use.
APPLICATIONS:
- Fabrication in Dairy industry.
- Fabrications in chemical industry.
- Fabrication in cast iron.
- Lorry body, bus body repairs.
- Repair jobs in steel.
- Stainless steel railing.
- Stainless steel repair jobs.
- Bronze & Brass repair jobs.
CATALOGUE
TECHNICAL SPECIFICATION
KAEN GTAW200
| Input Voltage (V) | 240V±15％ |
|---|---|
| Phase | Single |
| Frequency (HZ) | 50/60HZ |
| Output Current Range (A) | TIG: 26 MMA: 31.2 |
| Output Voltage Range (V) | 10-200A |
| Output No-load Voltage (V) | 78 |
| 25℃ Duty Cycle Output | 60% |
| Efficiency (%) | 80% |
| Power factor | 0.93 |
| Insulation Class | F |
| Housing Protection Class | IP21S |
| Net Weight (kg) | 6.5kg |
| Packing Dimension (mm) | 402mmx160mmx300mm |
