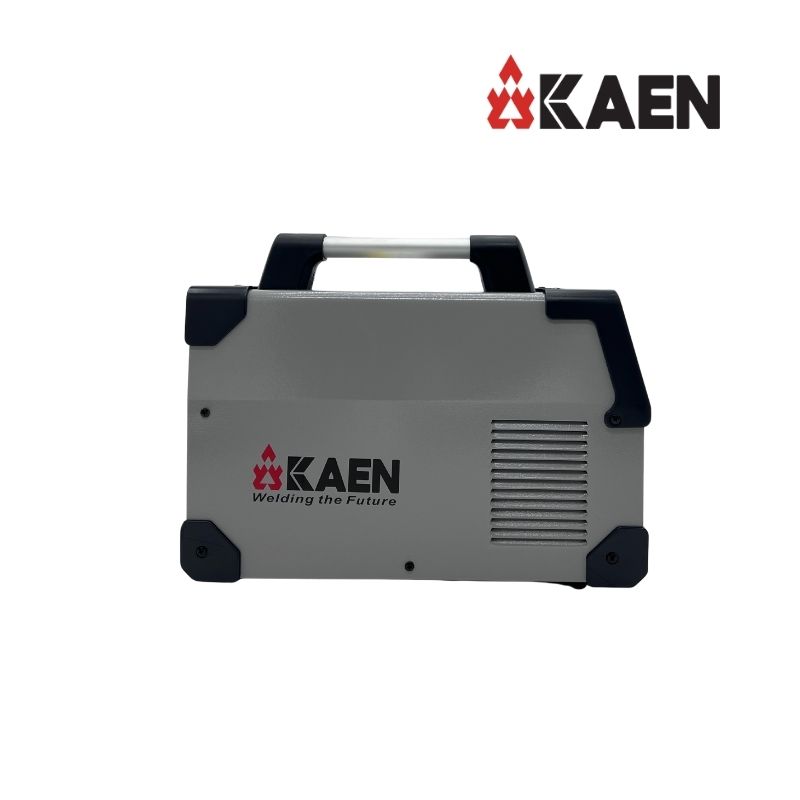

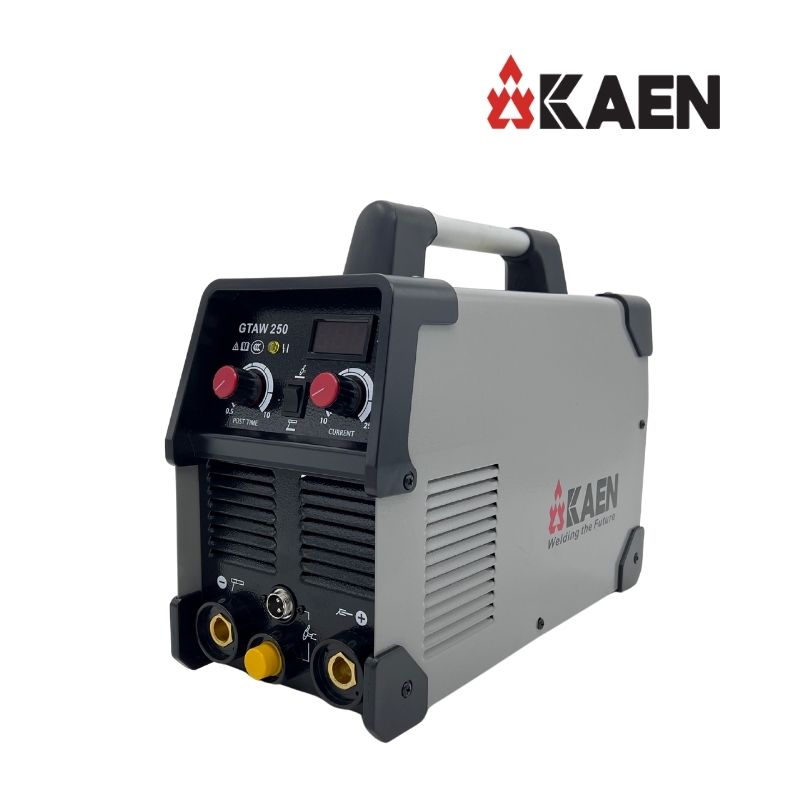

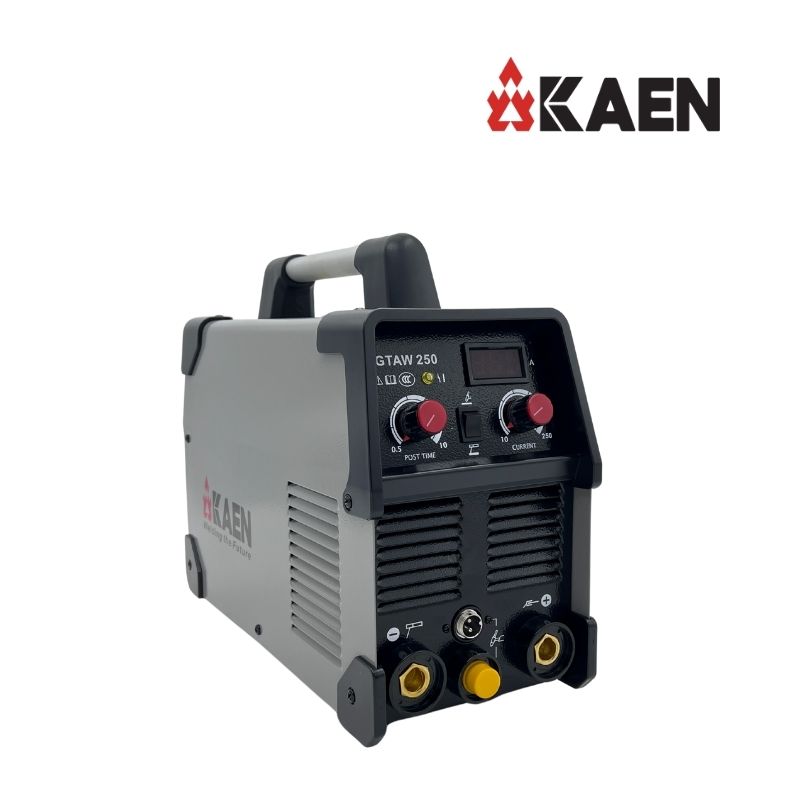

KAEN GTAW250 TIG Welding Machine

RM2,580.00

  • TIG & MMA dual welding functions.
  • High frequency inverter, high-efficiency.
  • Anti-Stick, Arc-Force, Hot Start.
  • Post flow adjustable.
  • Easy start, stable and reliable arc.
  • Equipped with digital display, offering precise current adjusting.
  • Tolerance for voltage fluctuation.
  • Compact size, lightweight and modern design.
Categories: , Tags: , , Brand:

Product Description

MODEL: KAEN GTAW250 TIG Welding Machine

FEATURES:
  • New generation of MOSFET inverter welding machine
  • Dual function: HF-TIG and MMA
  •  The whole machine is stable and reliable
  • 15% tolerance for input voltage
  • With 100% success ignition rate
  • The post time of gas adjustable (0.5-10s).
  • No fake on the output current of machine
  • Excellent welding performance for thin sheet metal.
  • Very low cost of use.
APPLICATIONS:
  • Fabrication in Dairy industry.
  • Fabrications in chemical industry.
  • Fabrication in cast iron.
  • Lorry body, bus body repairs.
  • Repair jobs in steel.
  • Stainless steel railing.
  • Stainless steel repair jobs.
  • Bronze & Brass repair jobs.
Product Warranty

12 Months

CATALOGUE

Download Here



Technical Specification

Input Voltage (V)

240V±15%

Phase

Single

Frequency (HZ)

50/60HZ

Rated Input Power (A)

TIG: 35@230A MMA: 38@190A

Current Adjust Range (A)

10-250

No-load Voltage (V)

78V

25℃, Duty Cycle Output (%)

60

Efficiency (%)

85%

Power factor

0.93

Insulation Class

H-F

Housing Protection Class

IP21S

Net Weight (kg)

7.5

Packing Dimension (mm)

402x160x300
