KAEN SMAW450 MMA Welding Machine

RM2,800.00

  • Advanced (IGBT) inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
Categories: , Tags: , , Brand:

Product Description

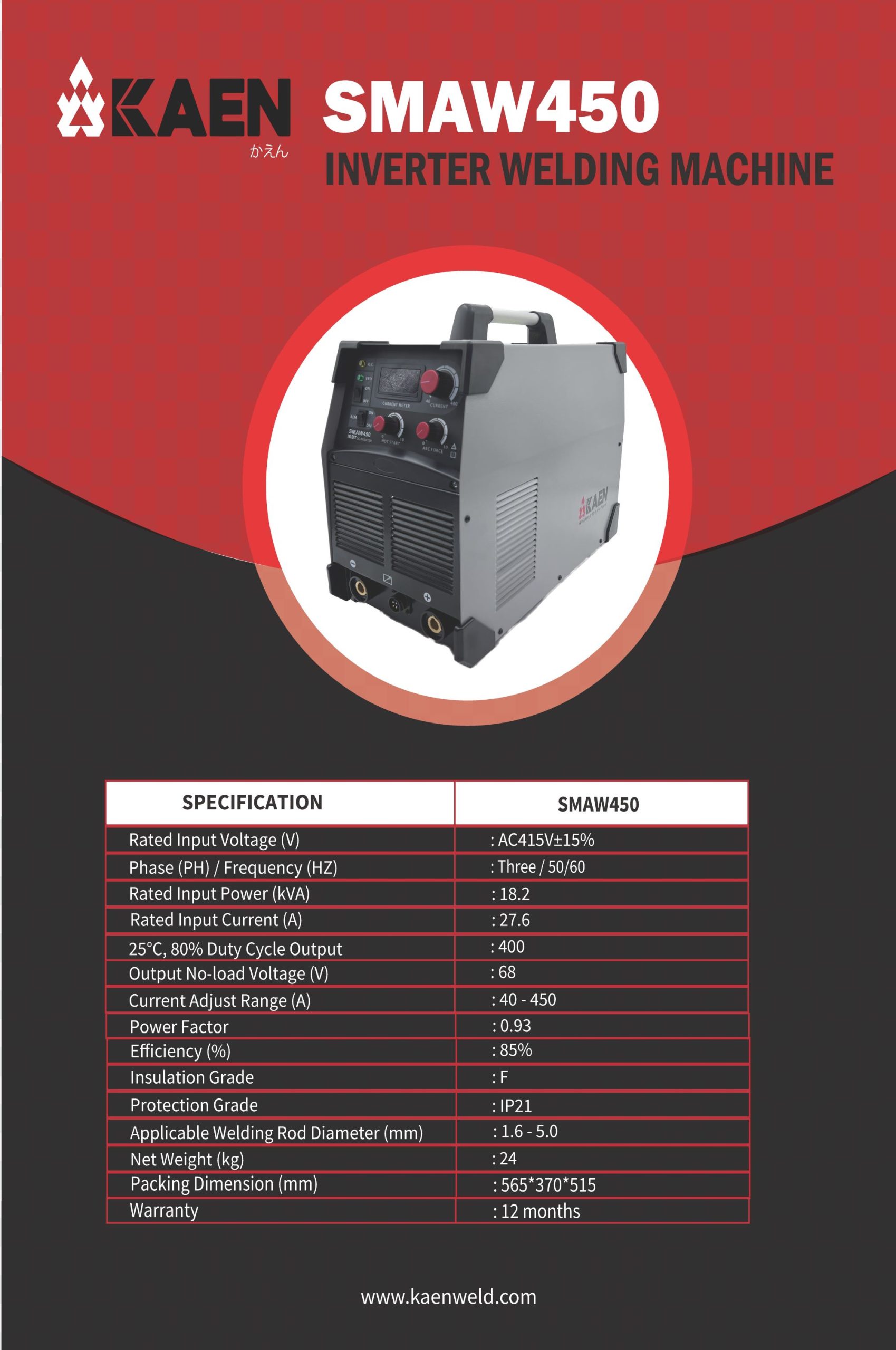

MODEL: KAEN SMAW450 MMA Welding Machine

FEATURES
  • Delivers an excellent arc performance;
  • Extra light, compact and portable design;
  • Over-current protection and overload protection to ensure safety;
  • Ideal for light- and medium-duty daily welding applications;
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • An advanced IGBT inverter technology with a high duty cycle and an excellent ignition voltage make the welder more reliable and less prone to damage or failure.
  • Energy-saving and highly efficient. The inverter welding machine’s switch also operates fast and uses less energy to do the final operation.
  • An inner cooling fan protects the welding machine from overheating contributing to the life expectancy of the device.
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
  • KAEN SMAW450 ideal for welding stainless steel, alloy steel, carbon steel, and other metal materials.
PRODUCT WARRANTY

12 Months Warranty

CATALOGUE

Download Here

Technical Specification

Input Voltage (V)

415V±15%

Phase

Three

Frequency (HZ)

50/60HZ

Rated Input Power (KVA)

18.2KVA

Current Adjust Range (A)

40-450A

25℃, Duty Cycle Output

60%

No-load Voltage (V)

68V

Efficiency (%)

85%

Power factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Applicable Welding Rod Diameter (mm)

1.6mm-5.0mm

Net Weight (kg)

24kg

Packing Dimension (mm)

565mmx370mmx515mm
