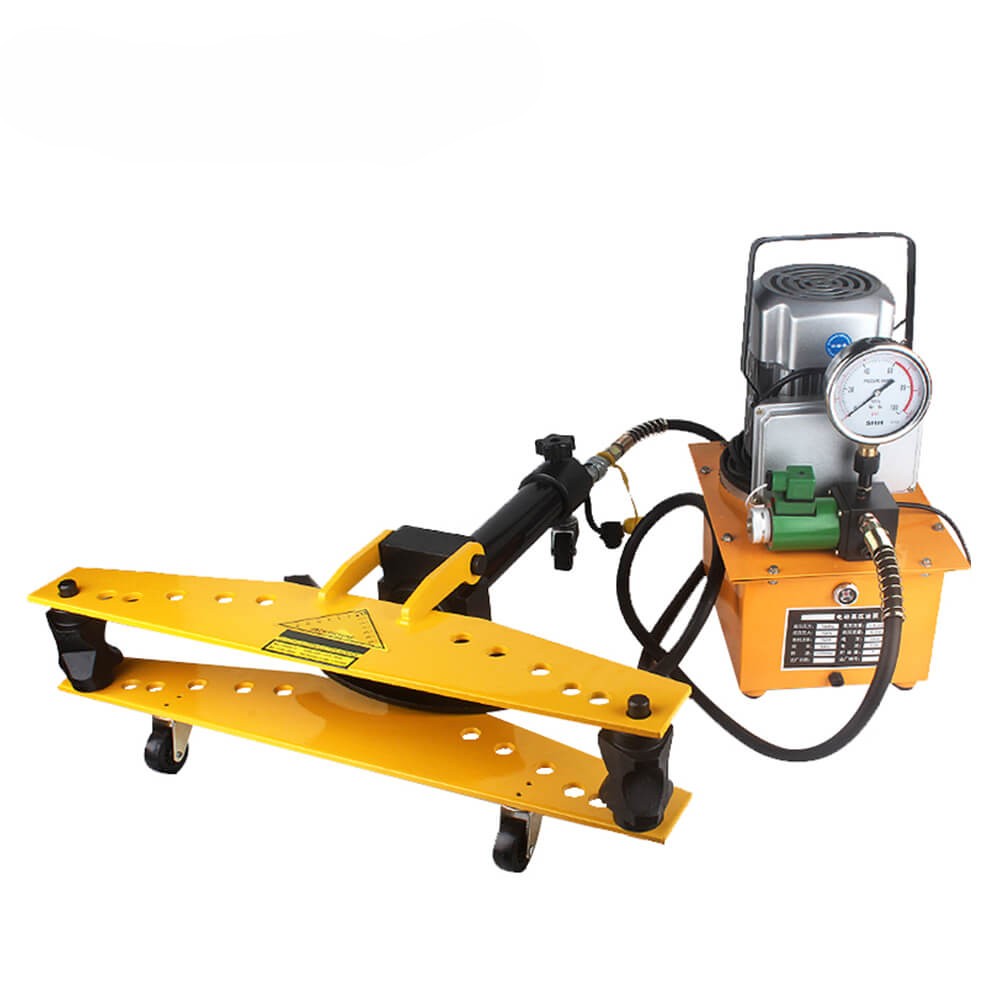

MODEL: KAEN DWG-3 + HHB-700A Hydraulic Manual Pipe Bender
Features:
- The moulds are made of ductile iron
High strength, good toughness and plasticity, higher strength than ordinary gray cast iron - Bend pipe interface
Thickened design with smooth edges and joints with curved nozzles - Adjustment column
Adjust the bending amplitude of the bent object - The maximum bending angle of the whole system is 90°
Unable to bend non-metallic pipe, unable to bend square pipe
Procedure:
- Turn the switch tightly with clockwise direction.
- Loosen the bolt.
- Add lubrication on mould and the pipe.
- Choosing corresponding mould base on size of pipe, set mould on the top of actuating rod. Then insert the rocker on nether moulding board. Put the pipe, turn two rockers and make the groove point to the mould.
- Turn back the upper mounding board; shake the handle of pump to make the mould press the pipe, bending the pipe until the angle is shaped.
- After bending. Loosen the switch anti-clockwise. The actuating rod would be back automatically. Open the upper moulding board, get out the pipe.

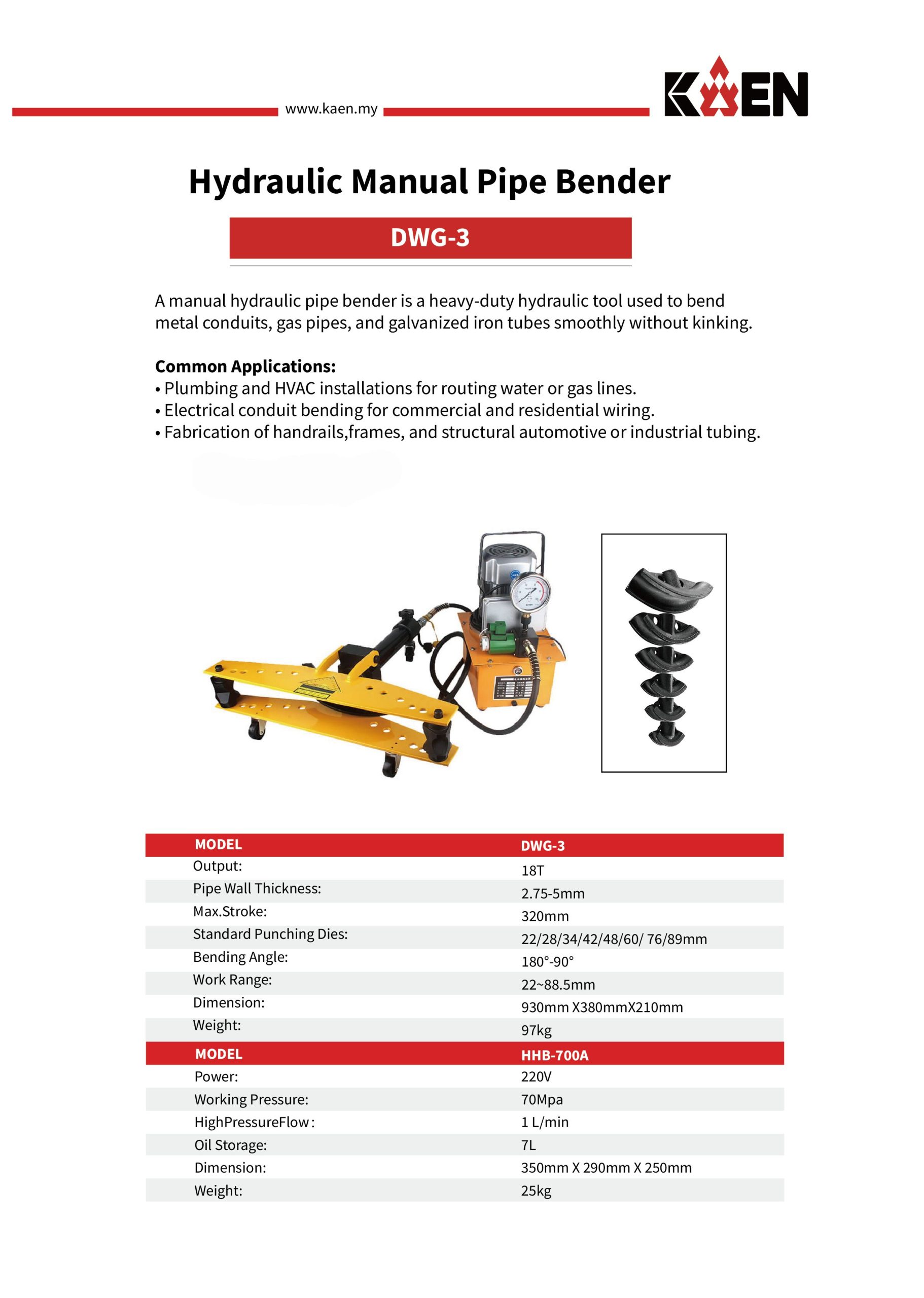

Model: DWG-3
| Output | 18T |
| Pipe Wall Thickness | 2.75 – 5mm |
| Max Stroke | 320mm |
| Standard Punching Dies | 22/28/34/42/48/60/76/89mm |
| Bending Angle | 180° – 90° |
| Work Range | 22 – 88.5mm |
| Dimension | 930mm X380mmX210mm |
| Weight | 97kg |
Model: HHB-700A
| Power | 220V |
| Working Pressure | 70Mpa |
| High Pressure Flow | 1 L/min |
| Oil Storage | 7L |
| Dimension | 350mm X 290mm X 250mm |
| Weight | 25kg |
Product Warranty
12 months Warranty
