KAEN GMAW255P Pulse MIG Welding Machine

RM4,500.00

  • Advanced (IGBT) inverter technology
  • Digital display, arc characteristic adjustable
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
Categories: , Tags: , , Brand:

Product Description

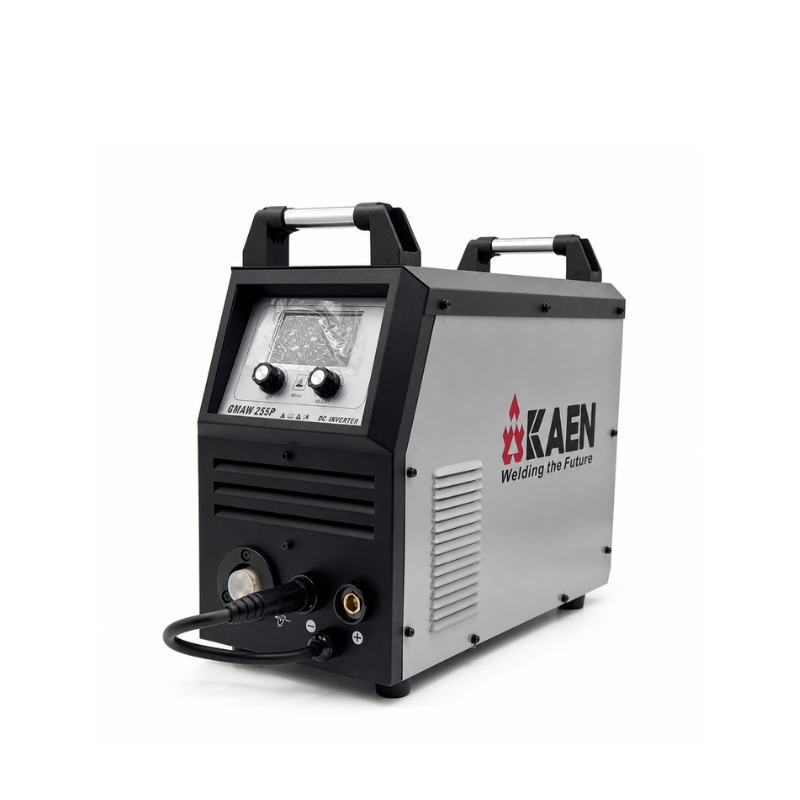

MODEL: KAEN GMAW255P Pulse MIG Welding Machine
FEATURES:
  • KAEN GMAW25PP offers fast, high quality, low spatter and consistently great looking welds, with better thermal control vs. conventional MIG welders.
  • Best known as a great process for welding aluminium, however it is also an excellent process for welding with stainless-steel and bronze wires. In many cases, Pulse MIG can achieve results that are comparable to TIG welding, but with speed and productivity that is superior to TIG.
  • In technical terms, Pulse MIG is a highly-controlled spray-transfer MIG process.
ADVANTAGES OF KAEN GMAW255P
  • Improved Productivity
  • Consumable Savings
  • Improved Weld Quality
  • Spatter and Fume Reduction
  • Heat Reduction
  • Energy Saving
PRODUCT WARRANTY

12 Months Warranty

CATALOGUE

Download Here

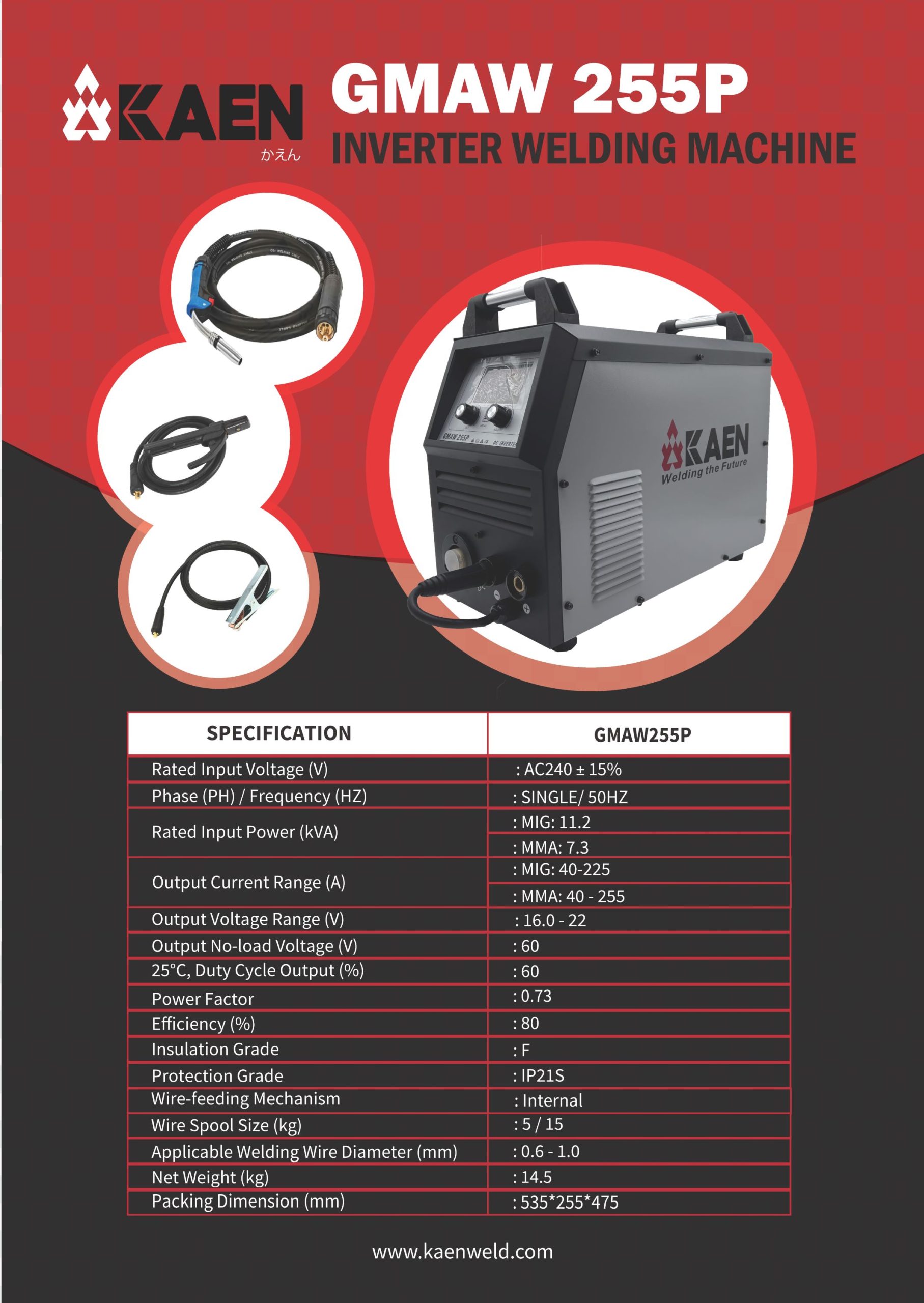

Additional Information

Input Voltage (V)

AC240V±15%

Phase

Single

Frequency (HZ)

50/60HZ

Rated Input Power (KVA)

MIG: 11.2
MMA: 7.3

Output Current Range (A)

MIG: 40-225
MMA: 40-255

25℃,Duty Cycle Output

60%

No-load Voltage (V)

60

Efficiency (%)

80%

Power factor

0.73

Insulation Class

F

Housing Protection Class

IP21S

Welding Thickness (mm)

0.6 – 1.0

Net Weight (kg)

14.5

Packing Dimension (mm)

535x255x475
