Product Description

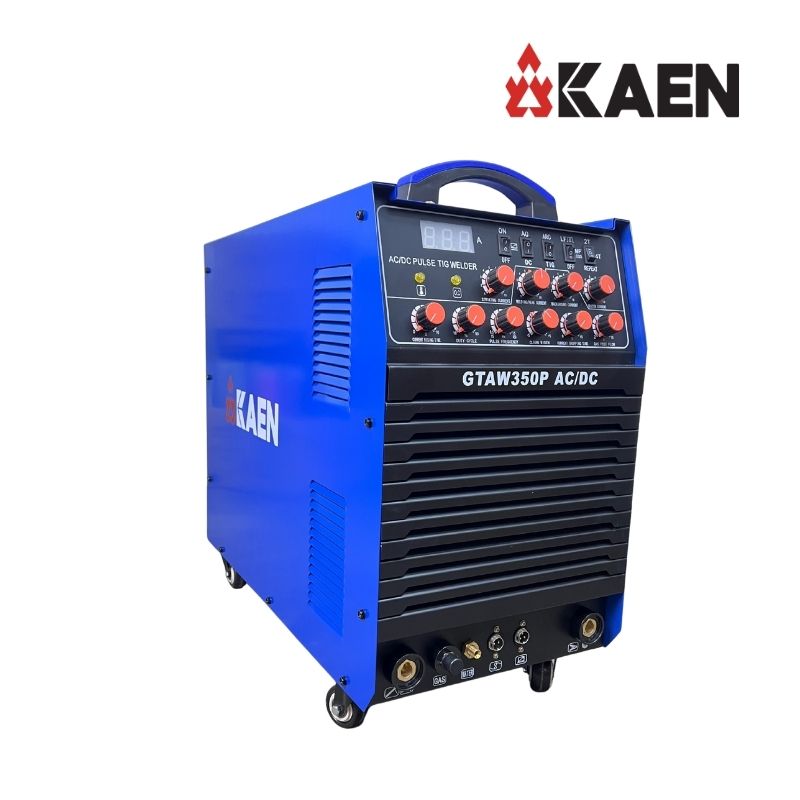

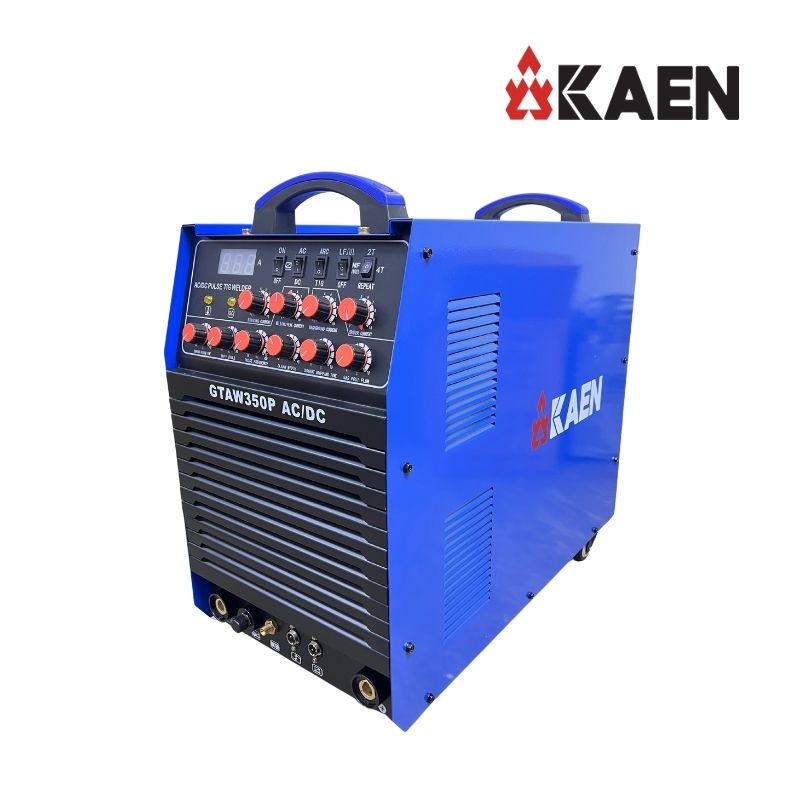

MODEL: KAEN GTAW350P AC/DC TIG Welding Machine
FEATURES:
- TIG & MMA dual welding functions
- High frequency inverter, high-efficiency
- Water cooled torch
- Welding current and base current adjustable
- Selection of Pulse mode available
- 2T/4T functions available
- Down Slope adjustable
- AC balance adjustable
- Pulse frequency and pulse width adjustable
- Easy start, stable and reliable arc
- Anti-Stick, Arc-Force, Hot Start
- Can configure with foot pedal.
- Equipped with digital display, offering precise current adjusting
- Tolerance for voltage fluctuation
APPLICATIONS:
- Ship building and maintenance
- Vehicle Engine repairs
- Aluminium form work repairing
- Aluminium Extrusions welding
- Fabrications in chemical industry
- Repair jobs in steel
- Stainless steel repair jobs
- Bronze & Brass repair jobs.
CATALOGUE
TECHNICAL SPECIFICATION
KAEN GTAW350P AC/DC
| Input Voltage (V) | 415V±15％ |
|---|---|
| Phase | Three |
| Frequency (HZ) | 50/60HZ |
| Rated Input Power (A) | TIG: 10.5A MMA: 12.9 |
| Current Adjust Range (A) | 30-350A |
| 25℃, Duty Cycle Output (%) | 60 |
| No-load Voltage (V) | 68V |
| Efficiency (%) | 85% |
| Power factor | 0.93 |
| Insulation Class | H-F |
| Housing Protection Class | IP21S |
| Net Weight (kg) | 33 |
| Packing Dimension (mm) | 630x320x610 |
