Product Description

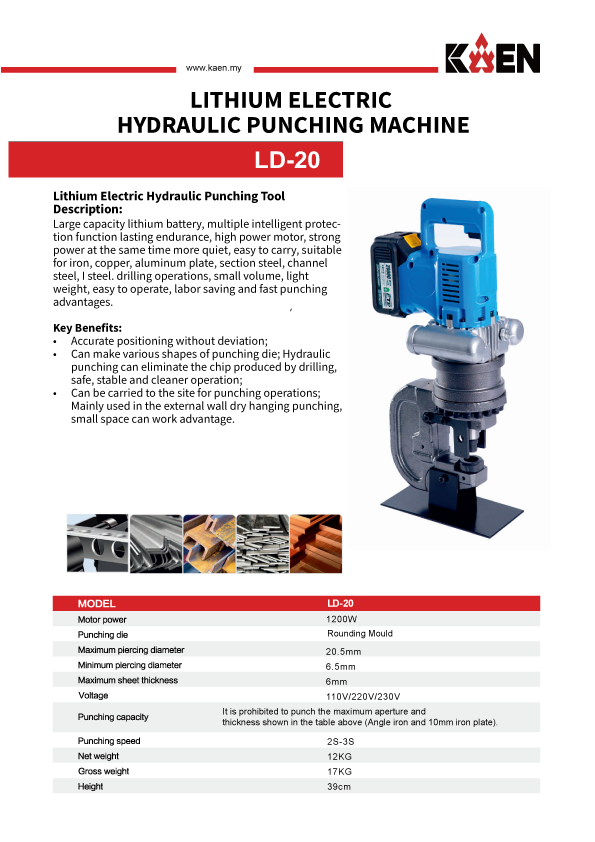

Model: AEN LD-20 Lithium Electric Hydraulic Punching Machine
Lithium Electric Hydraulic Punching Tool Description:
Large capacity lithium battery, multiple intelligent protection function lasting endurance, high power motor, strong power at the same time more quiet, easy to carry, suitable for iron, copper, aluminum plate, section steel, channel steel, I steel. drilling operations, small volume, light weight, easy to operate, labor saving and fast punching advantages.
• Accurate positioning without deviation;
• Can make various shapes of punching die; Hydraulic punching can eliminate the chip produced by drilling, safe, stable and cleaner operation;
• Can be carried to the site for punching operations; Mainly used in the external wall dry hanging
punching, small space can work advantage.
It is prohibited to punch the maximum aperture and thickness shown in the table above (Angle iron and 10mm iron plate).
• Accurate positioning without deviation;
• Can make various shapes of punching die; Hydraulic punching can eliminate the chip produced by drilling, safe, stable and cleaner operation;
• Can be carried to the site for punching operations; Mainly used in the external wall dry hanging
punching, small space can work advantage.
It is prohibited to punch the maximum aperture and thickness shown in the table above (Angle iron and 10mm iron plate).
Specification:
Voltage: 220V/110V
Motor Power: 1200w
Punching Die: 6.5/ 9/ 13/ 17/ 20.5
Maximum Piercing Diameter: 20.5mm
Minimum Piercing Diameter: 6.5mm
Copper/Aluminum plate: 3-8mm
Iron/plate: 3-6mm
Angle iron: 4-6# angle iron
Channel steel: maximum No. 10 channel steel
Weight: 12KG
