KAEN SMAW180 MMA Welding Machine

RM500.00

  • Advanced (IGBT) inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
Categories: , Tags: , , Brand:

Product Description

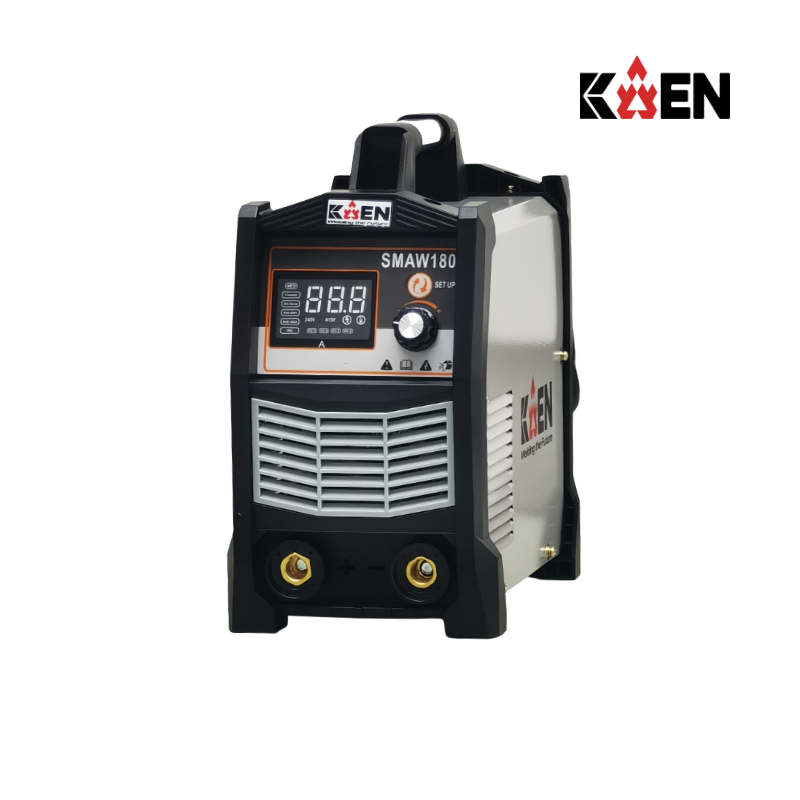

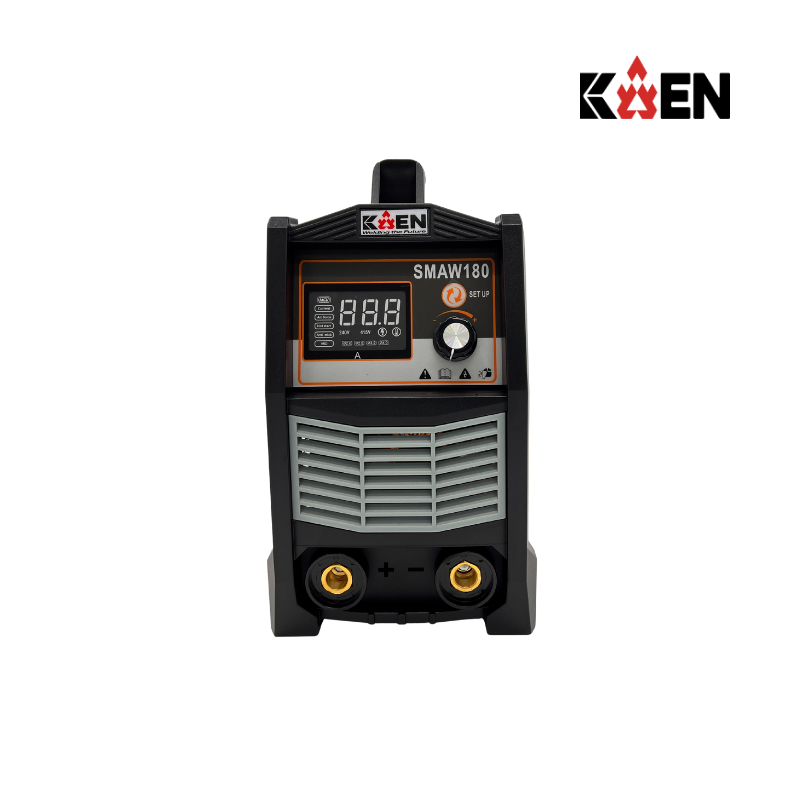

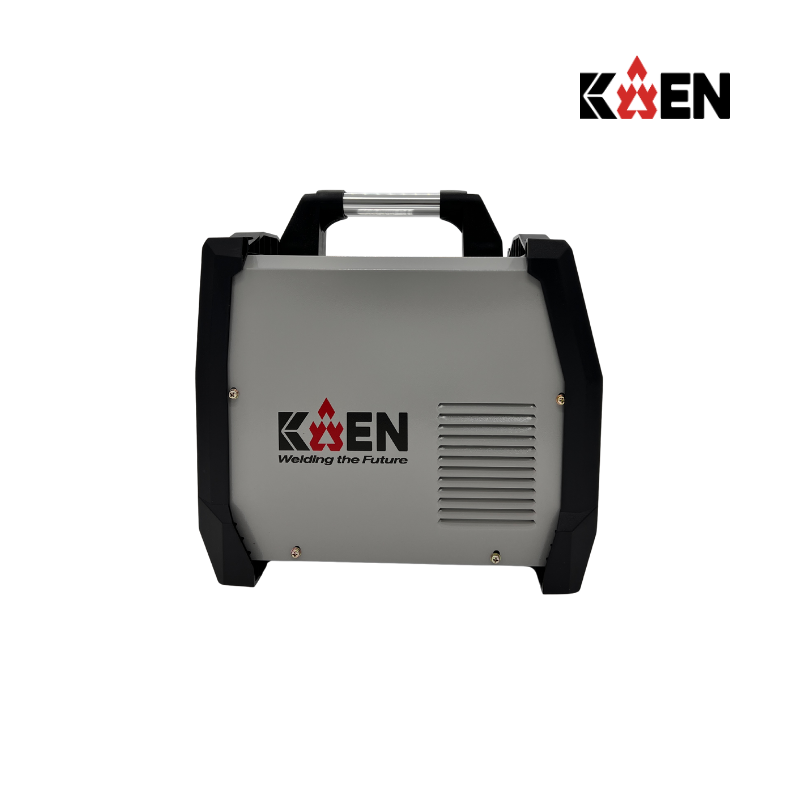

MODEL: KAEN SMAW180 MMA Welding Machine
FEATURES
  • Digital monitor for viewing the welding current for precise work.
  • Non-stick and easy ignition mechanism.
  • An intelligent fan – completely quiet – turns on only when welding starts.
  • Easy to carry, tough and durable.
  • Optimal for welding steel, stainless steel, castings, brass, galvanized.
  • The machine has a particular circuit that protects against voltage surges and allows you to work with a generator of 7.2 KVA and above.
  • Professional and technical advice from welding experts.
  • The inner characteristic control: fast system response and quick response to changes in the arc length continuous arc
  • KAEN SMAW180 is using the peak current control mode -works reliably even under frequent short circuit impact power device
PRODUCT WARRANTY

12 Months

CATALOGUE

Download Here

Additional Information

Input Voltage (V)

240V±15%

Frequency (HZ)

50/560HZ

Rated Input Power (KVA)

8.7

Rated Input Current (kvA)

43.6

Current Adjust Range (A)

20-180

25℃ 60% Duty Cycle Output

110

No-load Voltage (V)

72

Efficiency (%)

80

Power factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Applicable Welding Rod Diameter (mm)

1.6-3.2

Net Weight (kg)

5.5

Packing Dimension (mm)

370x255x255
